TEHNISKĀ INFORMĀCIJA
Modelis: K.SLS 3
Piektā riteņa augstums (H5) 1,250 mm
Ārējais garums (L) 13,190 mm
Ass tilpums 12 tonnas Tehniskā celtspēja (10 tonnu likumīgā celtspēja)
"Zoss kakla" garums (GL) 3,950 mm
Platformas garums (PL) 9,240 mm
Platformas augstums (PH) 875 mm
Garenbāze (WB) 8,100 mm
Attālums starp asīm 1.360 mm

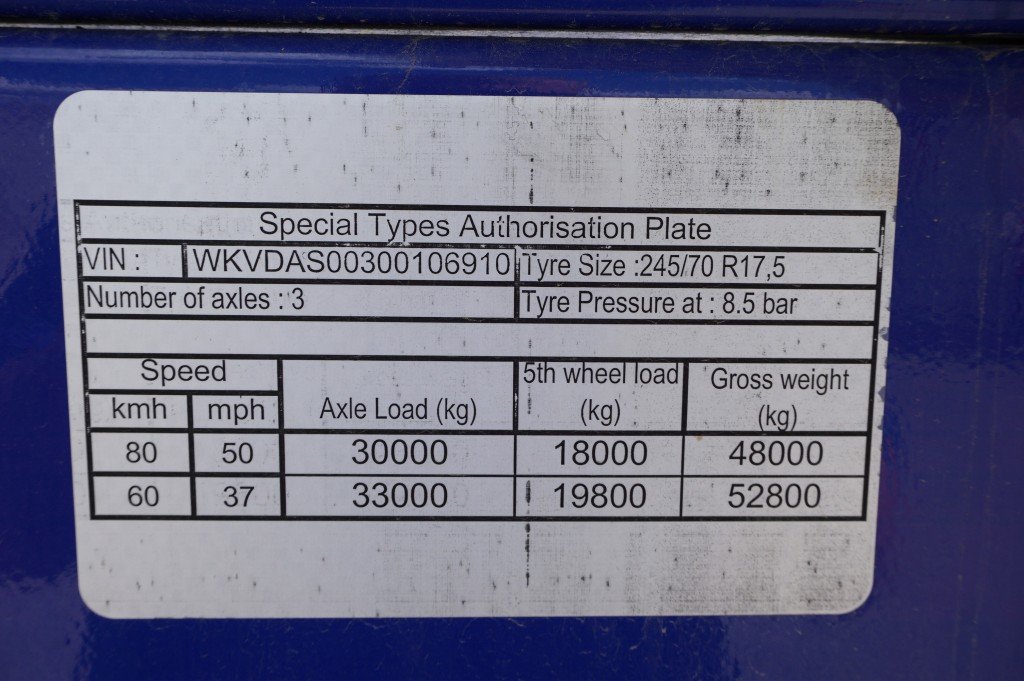

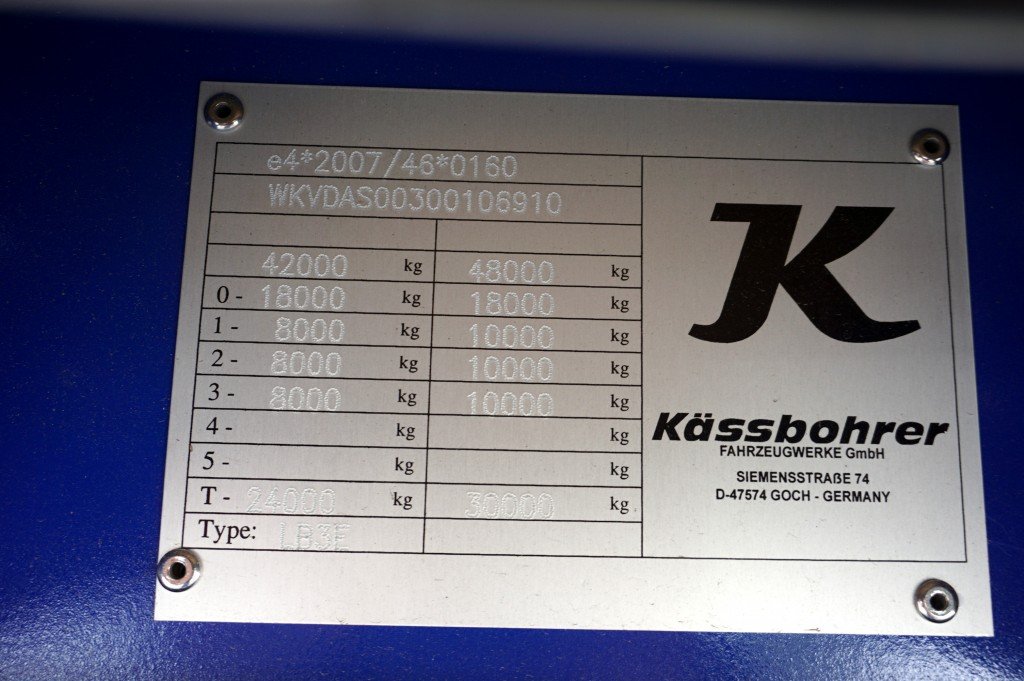

Ass slodze 30.000 kg
Taras svars ±% 3 * 9,949 kg
Kopējais platums (W) 2,550 mm + 600 mm (ar sānu pagarinājumiem)
Karaļa tapas ietilpība 18 000 kg
Transportlīdzekļa pilna masa (60 km / h) 52 800 kg
Transportlīdzekļa pilna masa (80 km / h) 48 000 kg

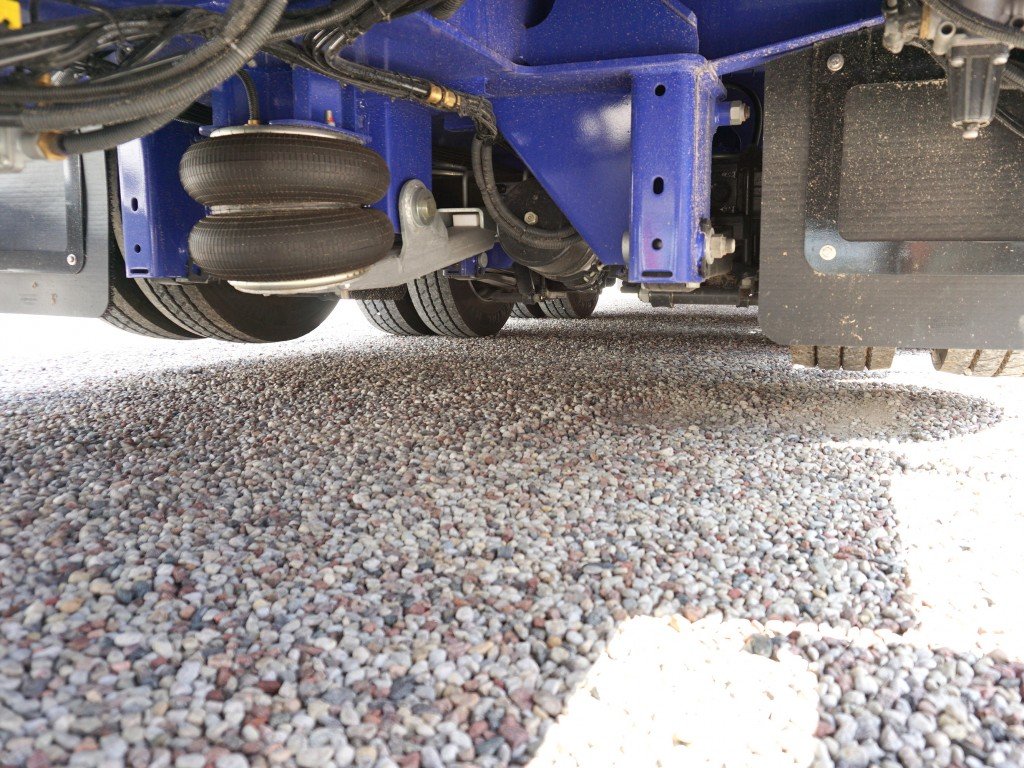

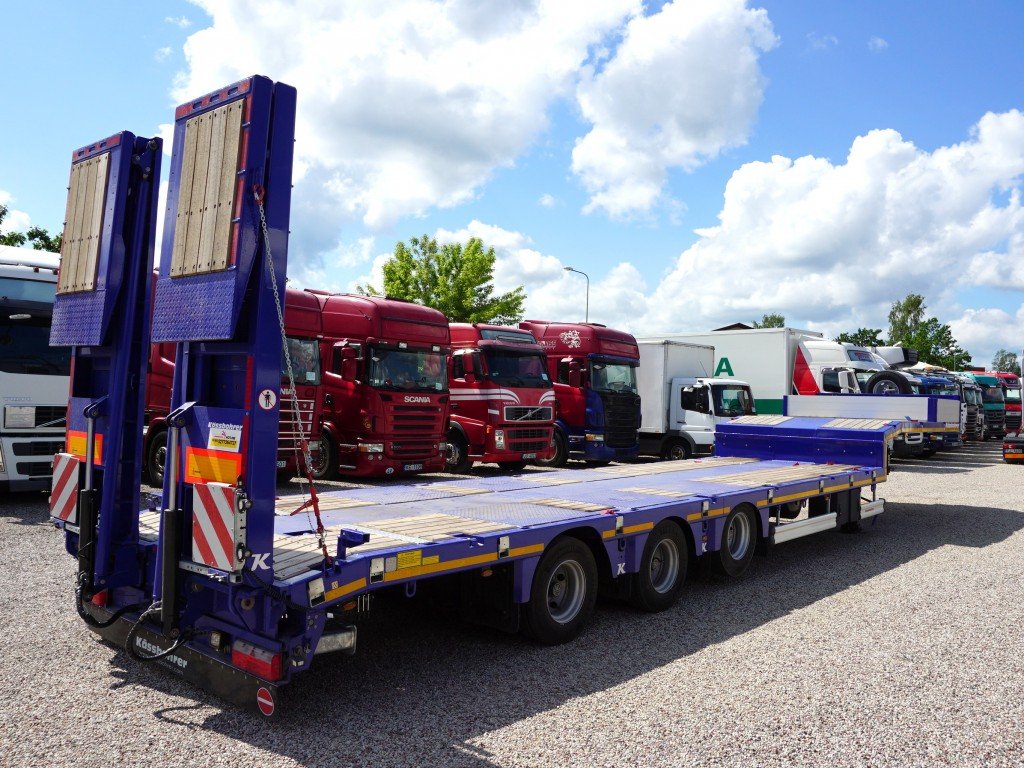

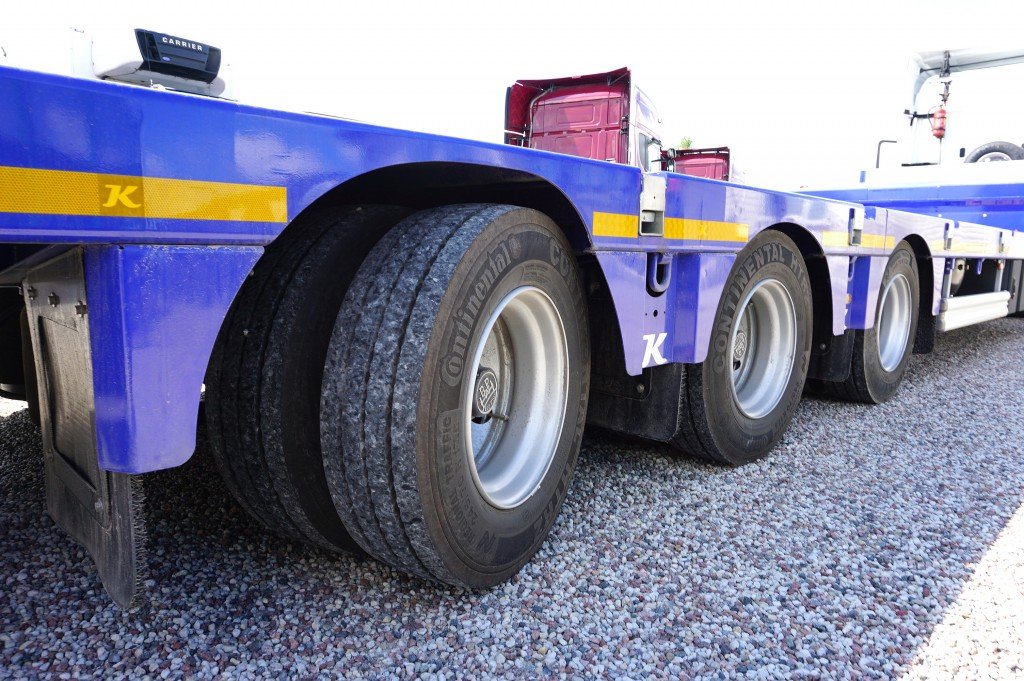

Chassis: Made of high quality and high strength ST 52 steel , in compliance with Standard ISO 1726 Brake System: Dual circuit electro-pneumatic WABCO EBS 4S/3M brake system with anti-lock (ABS) and tilt control system (RSS), in compliance with R egulation UN ECE R13 Tyre Size: 245/70 R 17.5 Axles: 3 Units, 2 units of fixed axles at the front, 1 unit of self-steering axle at the rear. BPW air suspension system and drum brake axles, Load sensitive 1st axle lifting system. Electric System: ASPÖCK lightning installation with 24V LED side position lamp and 2 x 7 and 1 x15 pin sockets, in compliance with Regulation UN EC E R48 and ADR Legislation Floor: 45 mm. thick hardwood floor and drop-patterned steel floor only on top of the wheels. Ramp Type: 2 units of long hydraulic ramps are included. Suitable for hydraulic sliding/folding operations, has hardwood covering with 40 m m t hickness, 4,200 mm length and 850mm width, 9 degrees of ramp angle, load capacity is 40,000 kg and 3,510 mm height inclosed position. Steering Type: 2 units of fixed axles at the front, 1 unit of self steering axles at the rear
